Description
mini digital servo metal gear HS-5245MG Mini Digital Metal Gear ServoHS 5245MG Mini Digital Metal Gear Servo Product Description Key Features Programmable Digital Circuit Metal and M P Gear Train Technology Overview With a custom programmable digital circuit and our strong metal and M P gear train technology, the HS 5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo. SPECS Output Shaft Style C24T Spline Voltage Range 4. 8V 6. 0V No Load Speed (4. 8V) 0. 15sec 60 No Load

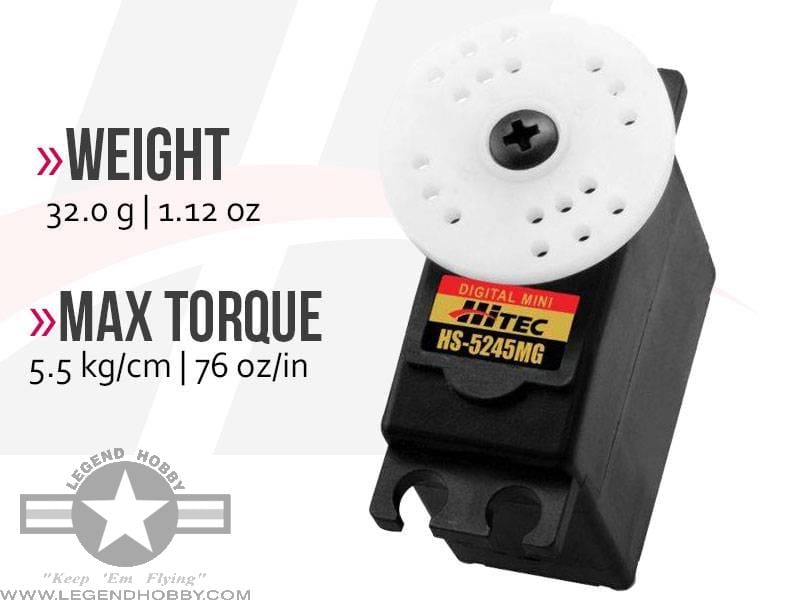

HS-5245MG Mini Digital Metal Gear Servo
Product Description
Key Features
- Programmable Digital Circuit
- Metal and M/P Gear Train Technology
Overview
With a custom programmable digital circuit and our strong metal and M/P gear train technology, the HS-5245MG is ideal for applications that call for a small, lightweight, fast and high torque servo.
SPECS
| Output Shaft Style | C24T Spline |
|---|---|
| Voltage Range | 4.8V - 6.0V |
| No-Load Speed (4.8V) | 0.15sec/60° |
| No-Load Speed (6.0V) | 0.12sec/60° |
| Stall Torque (4.8V) | 61 oz-in (4.4 kg.cm) |
| Stall Torque (6.0V) | 76 oz-in (5.5 kg.cm) |
| Max PWM Signal Range | 750-2250μsec |
| Travel per µs (Stock) | .079°/μsec |
| Travel per µs (Reprogrammed) | .133°/μsec |
| Max Rotation (Stock) | 118° |
| Max Rotation (Reprogrammed) | 199° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Current Drain - idle (4.8V) | 3mA |
| Current Drain - idle (6.0V) | 3mA |
| Current Drain - no-load (4.8V) | 180mA |
| Current Drain - no-load (6V) | 230mA |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 1µs |
| Motor Type | 3 Pole Ferrite |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Material | 4 Metal and 1 Nylon |
| Wire Length | 11.81" (300mm) |
| Weight | 1.12oz (32g) |
| Wire Gauge | 25AWG |
| Servo Size | Mini |
